Outdoor LED Display

outdoor led video billboards

outdoor led video billboards

outdoor led video billboards

1. Light and slim cabinet allows quick build screen in short time.

2. Die-cast aluminum molding technology produces high precision and rigid cabinet. lt can ensure the whole screen in good uniformity.

3. Cabinet size is 640*640mm,unit cabinet weighs 11kgs. lt's ideal for rental installation occasions which require small manpower and quick set up.

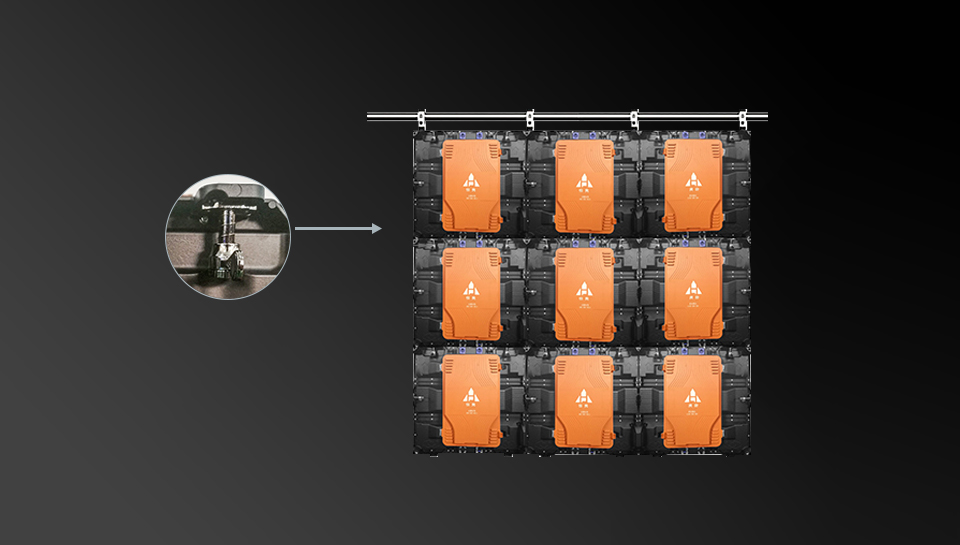

4. Four sets fast lock locate in left and right side, so does up and down side. Without professional tooling, only two hands still can lock the screen.

5. Separate power and receiving card control box design allows completely replace if it failures to work.

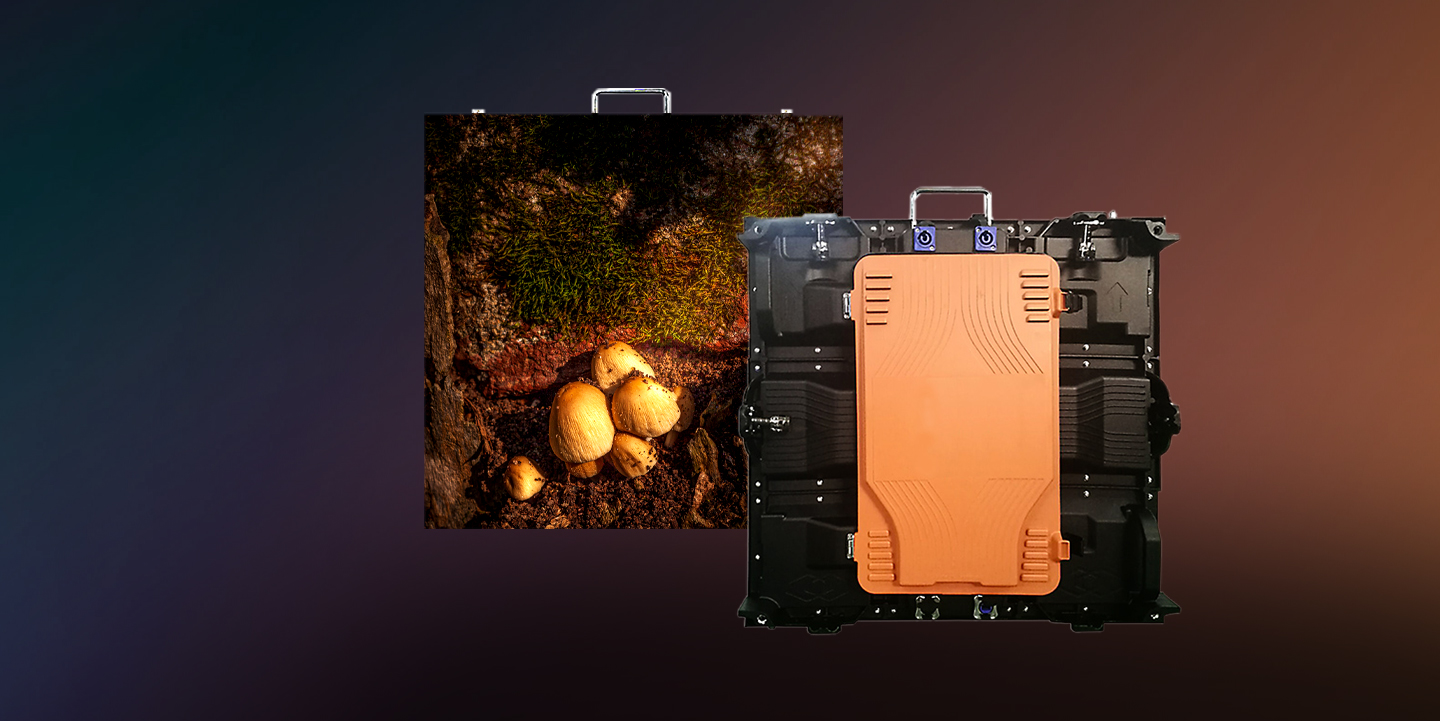

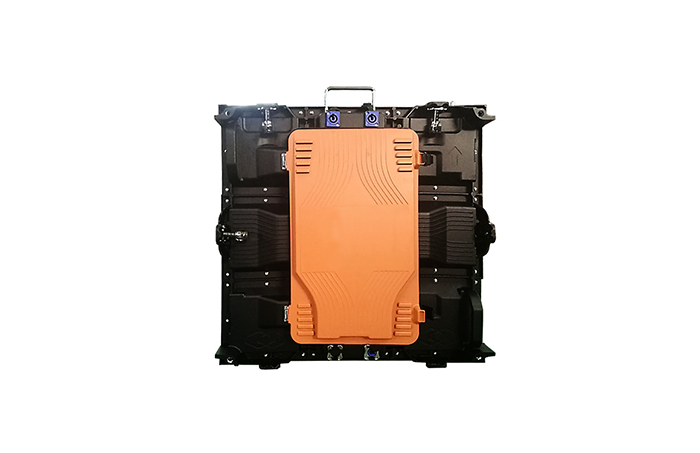

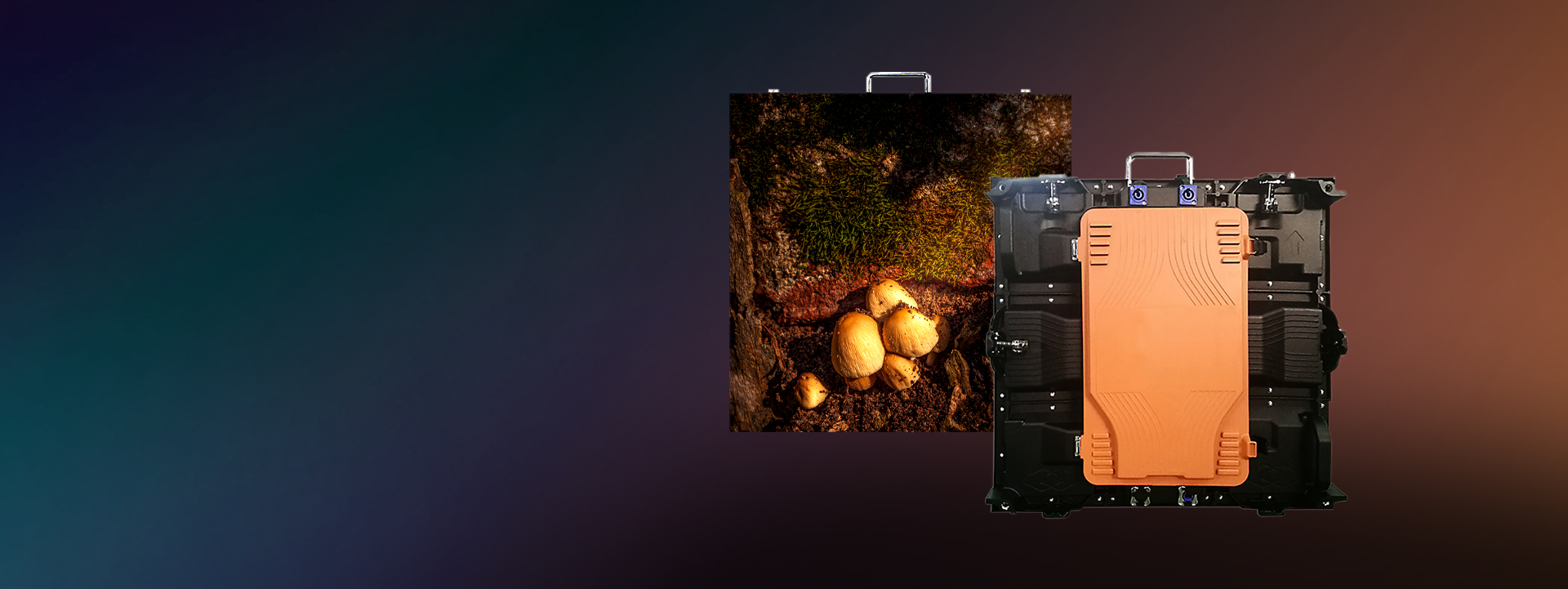

P6 outdoor rental led display

Quick to install; lP65 protection
outdoor led video billboards

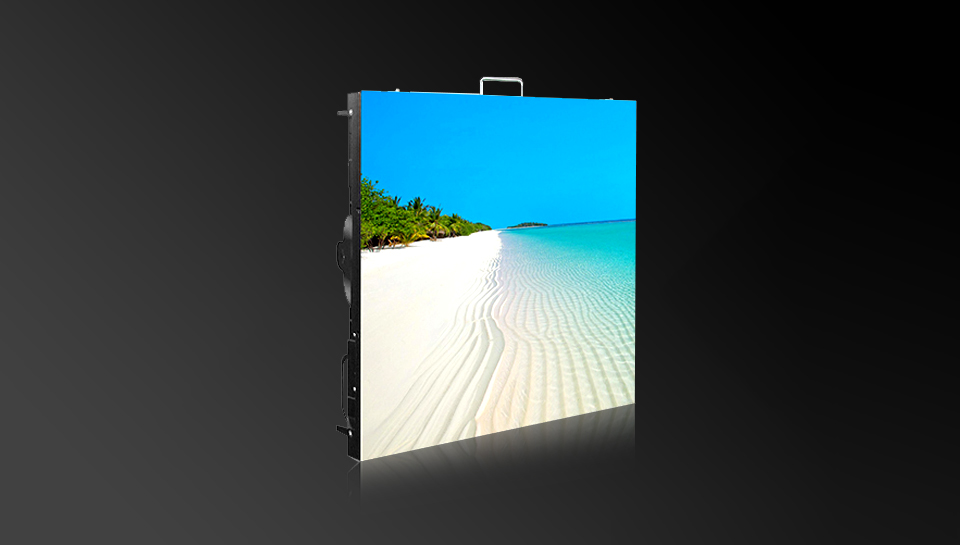

Quick to install

Light and slim cabinet allows quick build screen in short time. Cabinet size is 640*640mm,unit cabinet weighs 11kgs. lt's ideal for rental installation occasions which require small manpower and quick set up.
outdoor led video billboards

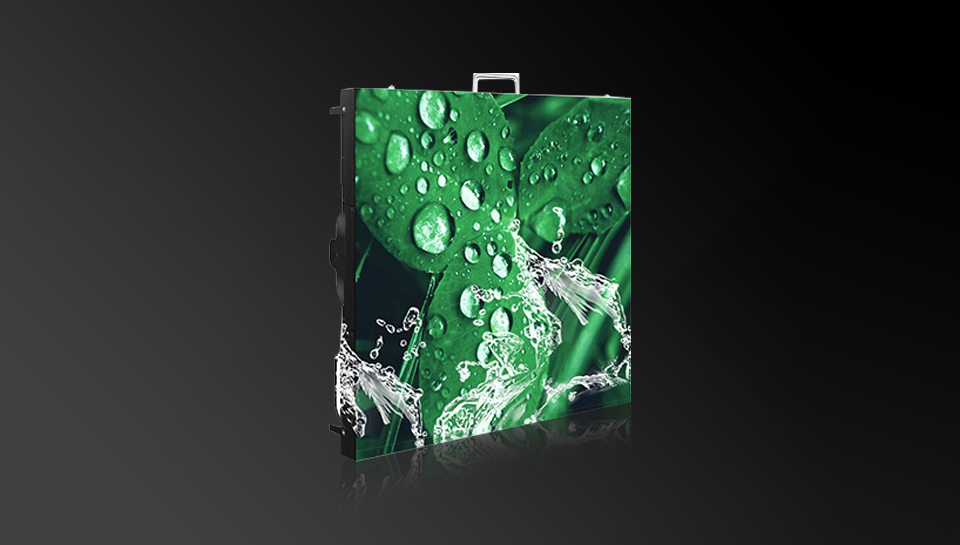

IP65 waterproof protection

IP65 waterproof protection,with plastic led module mask,dustproof and waterproof.
outdoor led video billboards

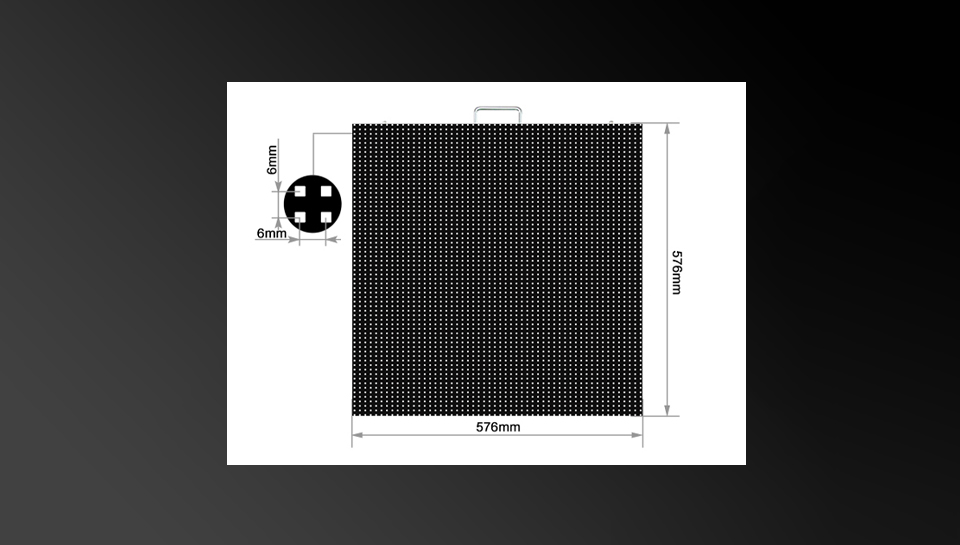

Size

outdoor led video billboards

Parameter

Pixel pitchp6
Module size192x192mm
Pixels Density27777dots/sqm
Pixel configuration1R1G1B
Drive mode8s
LED packagingSMD2727/SMD3535
Module resolution32x32
Module weight0.38kg
Module interfaceHUB75-E
Module working voltage5V
Life span100000hours
Refresh rate1920Hz
Modules per square meter27.1pcs
White balance brightness6000~6500nits
Working temperature-20~50
Working environment humidity10%~70%
Screen working voltage220V±15%/110V±15%
Best viewing angle≦140°
Noise rate<0.0001
IP ratingIP65
Cabinet size576x576mm


The specifications are for reference, actual values may vary.
